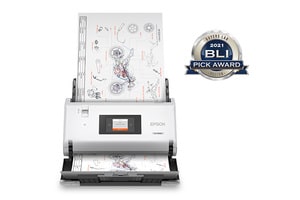

Epson DS-32000 Large-Format High-Speed Duplex Document Scanner B11B255201



The Epson DS-32000 Large-Format Document Scanner B11B255201 delivers exceptional speed, durability and media flexibility for high-volume businesses that need to capture both standard and oversized documents.

Featuring scan speeds up to 90 ppm / 180 ipm, a large 120-sheet Automatic Document Feeder, single-pass duplex scanning and an impressive 40,000-sheet peak daily duty cycle, the DS-32000 is engineered for demanding production-level document workflows.

Its flexible design provides both vertical and horizontal feed positions, allowing the scanner to process everything from everyday office paperwork and 12″-wide large-format originals to folded documents, sealed envelopes, plastic cards, passports and delicate media.

Epson DS-32000 High-Performance Large-Format Scanner

The Epson DS-32000 combines production-level scanning performance with a compact desktop design.

Its high-capacity Automatic Document Feeder processes large batches with minimal interruption while single-pass duplex technology captures both sides of each sheet simultaneously.

Maximum scanning performance reaches:

90 ppm — Pages Per Minute
180 ipm — Images Per Minute

With a peak daily duty cycle of up to 40,000 sheets, the DS-32000 is designed for organizations where document scanning is a major part of everyday operations.

Key Features

• Ultra-Fast Scanning: Scan at speeds up to 90 ppm / 180 ipm.
• Single-Pass Duplex: Captures both sides of each document simultaneously.
• 120-Sheet ADF: Handles up to 120 Letter/A4 sheets at standard paper weight.
• 60-Sheet A3 Capacity: Process substantial batches of large-format A3 documents.
• 40,000-Sheet Peak Daily Duty Cycle: Designed for demanding high-volume environments.
• 12″-Wide Large-Format Scanning: Handles A3, 11″ x 17″ and other oversized documents.
• 600 dpi Optical Resolution: Produces sharp text, graphics and document images.
• 2.7-Inch Color Touchscreen: Convenient access to scanning jobs, settings and maintenance.
• Vertical and Horizontal Feed Positions: Optimize the paper path for different types of originals.
• Sealed Envelope Scanning: Horizontal feed handles compatible sealed envelopes.
• Passport Scanning: Scan compatible passports using an optional passport carrier sheet.
• Plastic Card Scanning: Handles standard and embossed plastic cards.
• Folded Document Scanning: Process compatible folded originals.
• Business Card Scanning: Load multiple paper business cards for efficient capture.
• Extra-Long Document Scanning: Handles documents up to 220 inches long at supported resolution.
• Power Separation Mode: Provides additional paper-separation force for difficult batches.
• Slow Mode: Provides gentler feeding for delicate documents.
• Ultrasonic Double-Feed Detection: Helps prevent missing pages.
• Paper Protection: Helps protect valuable originals during scanning.
• TWAIN and ISIS® Drivers: Integrates with a wide variety of document-management applications.
• OCR Capability: Create searchable PDF files and editable digital documents.
• 3-Year Limited Warranty: Includes Next-Business-Day replacement where available under Epson warranty terms.

Exceptional 40,000-Sheet Daily Capacity

The Epson DS-32000 is built for organizations with extremely demanding scanning requirements.

Its 40,000-sheet peak daily duty cycle makes it particularly well suited for environments such as:

• Central document-processing departments
• Government agencies
• Banks and financial institutions
• Healthcare organizations
• Medical records departments
• Insurance companies
• Universities
• Legal document centers
• Corporate records departments
• Accounting operations
• Document conversion companies
• Service bureaus
• Enterprise records management

For organizations that routinely process thousands or even tens of thousands of sheets, the DS-32000 provides considerably more capacity than a conventional workgroup scanner.

Ultra-Fast 90 ppm / 180 ipm Scanning

The DS-32000 is rated for scanning speeds up to:

90 ppm / 180 ipm at 300 dpi

in black-and-white, grayscale or color.

The maximum advertised speed is based on A4 documents loaded in landscape orientation.

At higher 600 dpi resolution, scanning speed is reduced, allowing users to choose between maximum throughput and higher-resolution document capture depending upon the job.

High-Capacity Automatic Document Feeder

ADF capacity varies according to the size and weight of the documents being scanned.

At standard paper weights, Epson specifies approximately:

Letter / A4: Up to 120 sheets
A3: Up to 60 sheets

Other supported feeder capacities include approximately:

Business Cards: Up to 30
Postcards: Up to 40
Envelopes: Up to 10
Carrier Sheets: Up to 10
Non-Embossed Plastic Cards: Up to 5
Embossed Plastic Cards: 1 at a time
Passport: 1 with optional passport carrier sheet
Long Documents: 1 at a time

This flexibility allows one scanner to process an unusually broad range of business originals.

Large-Format 12″-Wide Scanning

One of the DS-32000’s greatest advantages is its ability to scan originals up to 12 inches wide.

This allows businesses to process:

• A3 documents
• 11″ x 17″ paperwork
• Ledger-size documents
• Financial spreadsheets
• Engineering documents
• Oversized reports
• Maps
• Drawings
• Large forms
• Business records

Standard large-format originals can be fed directly without folding.

Flexible Vertical and Horizontal Feed Positions

The DS-32000’s adjustable scanner position is one of the features that sets it apart from conventional document scanners.

Vertical Feed Position

The vertical configuration is designed for efficient high-volume scanning of standard documents.

It provides fast feeding while maintaining a relatively compact desktop footprint.

Horizontal Feed Position

The scanner can also be positioned horizontally for specialty media such as:

• Sealed envelopes
• Folded originals
• Delicate documents
• Thick paperwork
• Specialty media

This flexible paper path allows the DS-32000 to accommodate document types that can be difficult for ordinary sheet-fed scanners.

Extra-Long Document Scanning

The Epson DS-32000 can scan unusually long documents.

Maximum document sizes include approximately:

12″ x 220″ at 200 dpi
12″ x 215″ at 300 dpi
12″ x 53″ at 600 dpi

Long-document capability can be particularly useful for:

• Continuous business records
• Transaction reports
• Medical documents
• Financial records
• Long receipts
• Specialized forms
• Industrial documentation

Passport Scanning

The DS-32000 can scan compatible passports when used with the optional Passport Carrier Sheet B12B819651.

Supported passports can be up to approximately 6 mm thick including the passport carrier sheet.

Passport scanning makes this model useful for environments such as:

• Government offices
• Financial institutions
• Healthcare registration
• Human resources departments
• Travel-related organizations
• Customer-verification operations

Plastic and Embossed Card Scanning

The DS-32000 can scan compatible plastic cards.

Maximum card thickness is approximately:

1.24 mm with embossing
1.1 mm without embossing

Applications include:

• Identification cards
• Insurance cards
• Membership cards
• Employee cards
• Customer identification
• Embossed plastic cards

Up to five compatible non-embossed plastic cards may be loaded, while embossed cards are fed individually.

Sealed Envelope Scanning

The horizontal paper path allows the DS-32000 to handle compatible sealed envelopes.

Up to approximately 10 envelopes can be loaded depending upon size, thickness and condition.

This capability can be useful when envelope information must be preserved as part of an electronic record.

Folded and Irregular Original Scanning

The DS-32000 can also handle folded documents and other specialty originals.

Optional carrier sheets are useful for:

• Fragile documents
• Photos
• Torn originals
• Wrinkled paperwork
• Irregularly shaped originals
• Valuable documents requiring additional protection

For delicate photographs, artwork and important originals, using a carrier sheet provides added protection rather than feeding the original directly through the scanner.

Power Separation Mode

A particularly useful feature of the DS-32000 is Power Separation Mode.

Power Separation Mode increases the force used to separate documents when processing difficult batches.

This can help with paperwork that tends to feed multiple sheets together.

It should not be used with very thin or delicate originals where additional separation force could damage the document.

Delicate Document Handling

For thin, old or fragile paperwork, the DS-32000 provides several features designed to improve document protection.

These include:

• Slow Mode
• Paper Protection
• Delicate feeding options
• Adjustable paper separation
• Ultrasonic Double-Feed Detection
• Double-Feed Detection Skip
• Skew detection
• Automatic Feeding Mode
• Glass Dirt Detection

Together, these features help the scanner accommodate a broader variety of document conditions.

Ultrasonic Double-Feed Detection

Ultrasonic sensors monitor documents as they enter the scanner.

If two or more sheets appear to be feeding together, the scanner can detect the condition and stop the job before pages are accidentally missed.

Double-feed detection can also be bypassed when intentionally scanning originals such as envelopes or documents containing overlapping materials.

Paper Protection

The DS-32000 includes Paper Protection technology.

The scanner monitors document feeding for signs of abnormal skewing or other feeding problems.

If a potentially damaging condition is detected, scanning can be stopped before the original travels farther through the paper path.

This is especially valuable when processing originals that cannot easily be replaced.

2.7-Inch Color Touchscreen

The DS-32000 includes a programmable 2.7-inch color touchscreen.

The control panel provides convenient access to:

• Scanning jobs
• Scanner settings
• Feeding modes
• Paper Protection settings
• Slow Mode
• Double-feed settings
• Maintenance information
• Scanner status
• Error information

This allows users to control many common functions directly from the scanner.

Powerful Document Management with OCR

Included Epson document-management software helps convert paper records into useful digital information.

Users can create:

• Searchable PDF files
• Multi-page PDFs
• Editable Microsoft Word files
• Editable Microsoft Excel files
• Editable Microsoft PowerPoint files
• Customized scan jobs
• Repeatable document workflows
• Electronic archives

OCR — Optical Character Recognition — recognizes printed text within scanned documents so information can be searched, copied and reused.

Professional Software Integration

The DS-32000 supports TWAIN and ISIS® drivers, making it suitable for integration with a wide range of document-management systems.

Potential applications include:

• Enterprise content management
• Healthcare records systems
• Banking and financial applications
• Insurance workflows
• Government records management
• Legal document systems
• Accounting applications
• Document conversion services
• Archival systems

Technical Specifications

• Scanner Type: Sheet-fed, one-pass duplex color scanner
• Manufacturer Part Number: B11B255201
• Maximum Scan Speed: Up to 90 ppm / 180 ipm
• Maximum Speed Basis: A4 landscape at 300 dpi
• Duplex Scanning: Single-pass duplex
• Optical Resolution: 600 dpi
• Maximum Resolution: 1200 dpi
• Output Resolution: 50 to 1200 dpi
• Image Sensors: Dual Color CIS
• Light Source: White LED
• ADF Capacity — Letter/A4: Up to 120 sheets
• ADF Capacity — A3: Up to 60 sheets
• Peak Daily Duty Cycle: Up to 40,000 sheets
• Minimum Document Size: Approximately 2″ x 2″
• Maximum Document Size at 200 dpi: 12″ x 220″
• Maximum Document Size at 300 dpi: 12″ x 215″
• Maximum Document Size at 600 dpi: 12″ x 53″
• Paper Weight: Approximately 20 to 413 g/m²
• Embossed Card Thickness: Up to 1.24 mm
• Non-Embossed Card Thickness: Up to 1.1 mm
• Passport Support: Yes, with optional passport carrier sheet
• Sealed Envelope Support: Yes
• Carrier Sheet Support: Yes
• Business Card Scanning: Yes
• Color Input Depth: 30-bit
• Color Output Depth: 24-bit
• Monochrome Output Depth: 1-bit
• Display: 2.7″ Color Touchscreen
• Interface: SuperSpeed USB 3.0
• TWAIN Support: Yes
• ISIS Support: Yes
• Built-In Wi-Fi: No
• Built-In Ethernet: No
• Security: Kensington-Type Security Lock
• RoHS Compliant: Yes
• Warranty: 3-Year Limited Warranty

Important Connectivity Note

The standard Epson DS-32000 is a direct USB-connected scanner.

It does not include built-in Wi-Fi or Ethernet networking.

The Epson support installer contains some generic wording that refers to wired or wireless connections, but the model-specific hardware specifications identify SuperSpeed USB 3.0 as the scanner interface.

For your listing, I would advertise the DS-32000 as USB-connected.

Dimensions and Weight

Approximate U.S. Epson specifications:

Width: 14.6″
Depth: 6.6″
Height: 9.6″
Weight: Approximately 15.2 lb.

The scanner’s adjustable design also allows it to be repositioned and folded into a more compact configuration when not actively processing large document batches.

Power Consumption

Approximate current Epson specifications:

Operating: 20 W
Ready / Standby: 9.5 W
Sleep: 1.4 W
Power Off: 0.1 W

The AC adapter supports:

100–240 VAC, 50–60 Hz

Software & Compatibility

The Epson DS-32000 supports professional scanning and document-management software including:

• Epson Scan 2
• Document Capture Pro for Windows
• Document Capture for Mac
• Epson OCR components
• TWAIN-compatible applications
• ISIS-compatible applications

Epson continues to provide current software support for modern operating systems, so I would avoid placing the older operating-system limitations from the original printed specification sheet into your sales listing.

What’s in the Box

• Epson DS-32000 Large-Format Document Scanner
• Start Here poster
• SuperSpeed USB 3.0 cable
• AC adapter
• Power cable

Optional Accessories & Maintenance Items

Carrier Sheets — B12B819051

Useful for fragile, irregular, folded and easily damaged originals.

Passport Carrier Sheet — B12B819651

Designed to protect compatible passports during scanning.

Replacement Pickup Roller — B12B819611

Rated for approximately 300,000 pages under normal operating conditions.

Replacement Separation Roller — B12B819631

Rated for approximately 300,000 pages under normal operating conditions.

Cleaning Kit — B12B819291

Helps maintain reliable feeding and consistent image quality.

Actual consumable life may vary depending upon paper type, paper dust, document condition and operating environment.

Warranty

The Epson DS-32000 includes a 3-year limited warranty in the United States and Canada.

Epson also provides Next-Business-Day replacement where available and subject to applicable warranty terms and service requirements.

Why Choose the Epson DS-32000?

• Exceptional Speed: Scan up to 90 ppm / 180 ipm.
• 40,000-Sheet Peak Daily Duty Cycle: Built for extremely demanding workflows.
• 120-Sheet Letter/A4 ADF: Process large document batches with fewer interruptions.
• 60-Sheet A3 Capacity: High-volume scanning isn’t limited to letter-size paper.
• True 12″-Wide Large-Format Scanning: Process A3, 11″ x 17″ and other oversized originals.
• Vertical and Horizontal Feeding: Adapt the scanner to different media types.
• 220-Inch Long Document Capability: Handle unusually long business records.
• Passport Scanning: Optional carrier sheet supports passport workflows.
• Sealed Envelope Scanning: Horizontal feed expands document compatibility.
• Plastic Card Scanning: Handles both standard and embossed cards.
• Power Separation Mode: Provides additional feeding control for difficult batches.
• Advanced Paper Protection: Helps prevent damage to important originals.
• 2.7-Inch Touchscreen: Convenient access to scanner jobs and settings.
• Professional Integration: TWAIN and ISIS support many enterprise applications.
• OCR Capability: Convert paper records into searchable electronic information.
• Compact for Its Capacity: Delivers production-level performance in a desktop design.
• 3-Year Limited Warranty: Provides added protection for professional business users.

The Epson DS-32000 Large-Format Document Scanner is an excellent choice for organizations that need production-level document processing without moving to a large floor-standing scanning system.

Its combination of 90 ppm / 180 ipm performance, a 120-sheet ADF, 40,000-sheet peak daily duty cycle, 12″-wide document handling, flexible vertical and horizontal feeding, specialty media support and advanced paper-protection technology makes the DS-32000 particularly well suited for demanding enterprise document workflows.

Product Information

Brand: Epson
Model: DS-32000
Product Type: Large-Format High-Speed Duplex Document Scanner
Manufacturer Part Number: B11B255201
Maximum Scan Speed: Up to 90 ppm / 180 ipm
Letter/A4 ADF Capacity: Up to 120 Sheets
A3 ADF Capacity: Up to 60 Sheets
Peak Daily Duty Cycle: 40,000 Sheets
Optical Resolution: 600 dpi
Maximum Document Width: 12″
Maximum Document Length: 220″
Connectivity: SuperSpeed USB 3.0
Display: 2.7″ Color Touchscreen
Duplex Scanning: Yes
Passport Scanning: Yes — Optional Passport Carrier Sheet Required
Plastic Card Scanning: Yes
Envelope Scanning: Yes
TWAIN / ISIS Support: Yes
Approximate Weight: 15.2 lb.
Warranty: 3-Year Limited Warranty

Epson DS-32000 12×17 Large Format Scanner 90ppm 120-Sheet ADF B11B255201
