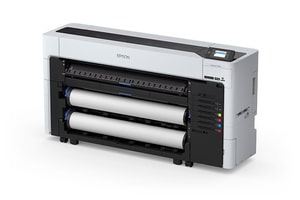

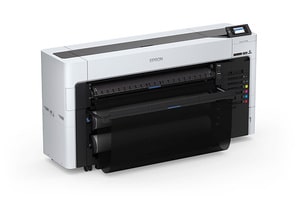

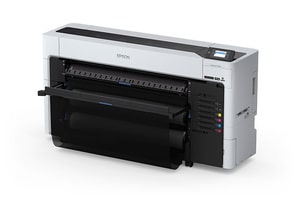

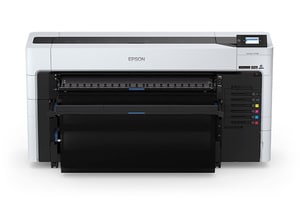

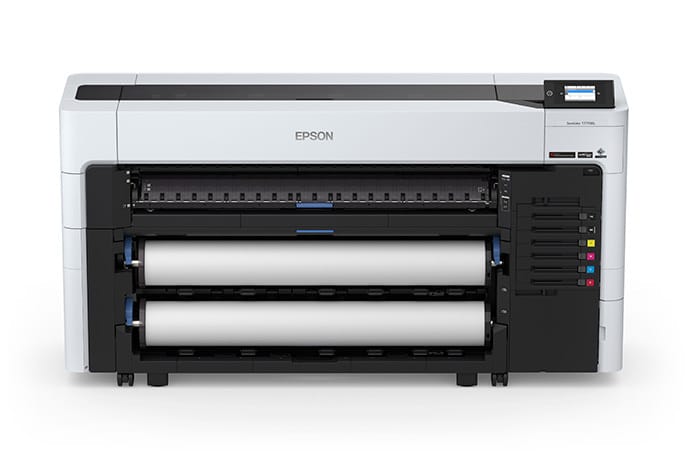

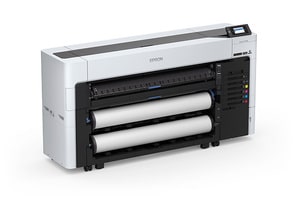

This design changes everything. Epson delivers a first-of-its-kind design that redefines speed, versatility, and efficiency for its class: the SureColor® T7770DL 44-Inch Large-Format Dual-Roll CAD/Technical Printer with 1.6 L Ink Pack System. Having the smallest footprint in its class—up to 25% smaller than its competition—and full-front operation means the T7770DL fits where other printers don’t. It’s designed for outstanding quality, sharpness, and speed, generating technical drawings at production-class speeds over 1,400 ft²/hr, A1/D-size prints in as little as 16 seconds, and graphics at speeds up to 300 ft²/hr.

Its innovative UltraChrome® XD3 six-ink set with dedicated Red Ink opens the door to both an extraordinary color gamut for a production printer and rich red branding colors. Built with a 1.6-liter bulk ink pack system (ink sold separately), this high-quality printer provides over double the ink capacity of previous generations for a remarkably low ink cost per milliliter, as well as helps minimize waste compared to Epson® SureColor T-Series cartridge systems. And simple, carefree operation combined with new levels of versatility and media flexibility helps users do more using less space—all with a low total cost of ownership.

Add it all up, and this is not just a one-of-a-kind printer: it’s the new benchmark in high-speed CAD and graphics.

Specifications

• Printing Technology: PrecisionCore MicroTFP 6-channel drop on demand
• Ink Type: UltraChrome XD3 Pigment Ink; 6-color with Red (Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
• Nozzle Configuration: 9,600 nozzles (1,600 x 6 channels)
• Maximum Resolution: 2400 x 1200 dpi
• Print Speed: CAD (B0 Size Plain Paper): Over 1,400 ft²/hr; A1/D Size (Plain Paper): 16 sec; Poster (Glossy): Over 300 ft²/hr
• Dimensions: 73″ x 19.6″ x 38.4″
• Weight: 364 lb
• Connectivity: SuperSpeed USB 3.0, Gigabit Ethernet, Wi-Fi (2.4 GHz and 5 GHz)
• Control Panel: 4.3″ touchscreen

Features

• Full-front operation for ease of use in any workspace
• Dual-roll productivity for versatile media handling
• Print on various media types including glossy, technical, bond, matte, and specialty media, as well as rigid posterboard up to 1.5 mm thick
• Easy maintenance with automated routine tasks and user self-service options
• Versatile connectivity options, including SuperSpeed USB 3.0, Gigabit Ethernet, and Wi-Fi
• Energy-efficient with a low total cost of ownership
• Seamless management with the included Epson Software Suite and Epson Cloud Solution PORT

What’s in the Box?

• SureColor T7770DL Printer
• Maintenance Box (Pre-Installed)
• Borderless Maintenance Box
• Two Roll Media Adapters (Pre-Installed)
• Start Here Poster
• AC Power Cable

Ordering Information

This product uses only genuine Epson-brand packs. Other brands of ink packs and ink supplies are not compatible and may not function properly or at all.

Eco Features

• ENERGY STAR® qualified
• RoHS compliant
• Recyclable product

Warranty

The SureColor T7770DL comes with a standard 1-year limited warranty with the option to purchase Extended Service Plans for up to a total of 5 years of continuous coverage.
